Text Box: Rack Guard Rack Protectors
Text Box: Rack guards are extremely simple to install by one person without tools. No need to drill into the floor or the rack upright to make this product work. Simply detach the hook-n-loop nylon strap, mount the correct-size and reattach the strap around the rack upright.  The straps are over-length in case of an obstruction behind the upright.
18” high, stackable, 3 lb net weight
Text Box: Tougher than your Tow Motor
Text Box: Bright Safety Yellow
UV stabilized to prevent fading
Waterproof
Easy to Install—No Tools required
Easy to remove & clean
Chemical resistant
Non-Conductive

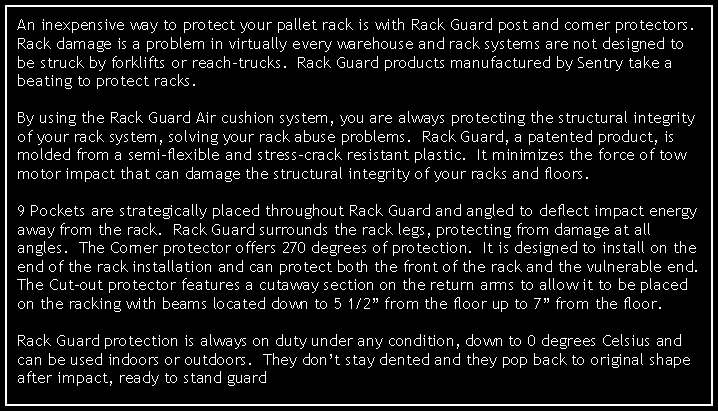

Text Box: An inexpensive way to protect your pallet rack is with Rack Guard post and corner protectors.  Rack damage is a problem in virtually every warehouse and rack systems are not designed to be struck by forklifts or reach-trucks.  Rack Guard products manufactured by Sentry take a beating to protect racks.

By using the Rack Guard Air cushion system, you are always protecting the structural integrity of your rack system, solving your rack abuse problems.  Rack Guard, a patented product, is molded from a semi-flexible and stress-crack resistant plastic.  It minimizes the force of tow motor impact that can damage the structural integrity of your racks and floors.

9 Pockets are strategically placed throughout Rack Guard and angled to deflect impact energy away from the rack.  Rack Guard surrounds the rack legs, protecting from damage at all angles.  The Corner protector offers 270 degrees of protection.  It is designed to install on the end of the rack installation and can protect both the front of the rack and the vulnerable end.  The Cut-out protector features a cutaway section on the return arms to allow it to be placed on the racking with beams located down to 5 1/2” from the floor up to 7” from the floor.

Rack Guard protection is always on duty under any condition, down to 0 degrees Celsius and can be used indoors or outdoors.  They don’t stay dented and they pop back to original shape after impact, ready to stand guard again.
Rack Guard - Rack Protectors 5 photosText Box: Rack Guards

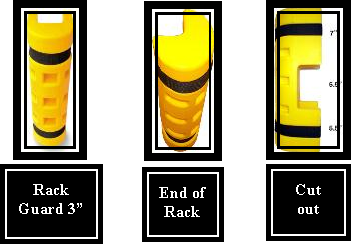

Available in the following sizes:

RS75:       3”
RS75CO:   3” with cutout
RS75END: 3” End of Rack
RS80:       3.25”
RS90:       3.5”
RS100:     4”

Protect your Racks



TOUGHER THAN YOUR TOW MOTOR

By using the Rack Guard Air Cushion System, you are always protecting the structural integrity of your rack system, solving your rack abuse problems.  Rack Guard, a patented product, is molded from a semi-flexible and stress-crack resistant plastic.  It minimizes the force of tow motor impact that can damage the structural integrity of your racks and floors.  9 pockets are strategically placed throughout Rack Guard and angled to deflect impact energy away from the rack.  Rack Guard surrounds rack legs, protecting from damage at all angles.  The Corner protector offers 270 degrees of protection.  It is designed to install on the end of the rack installation and can protect both the front of the rack and the vulnerable end.  The Cut-out protector features a cutaway section on the return arms to allow it to be placed on racking with beams located down to 5 1/2”from the floor up to 7” from the floor.



EASY TO SEE

Rack Guard protection devices are Bright Safety Yellow and UV stabilized to prevent fading.  They are waterproof and easy to remove and clean for maintenance.  Better yet, they are chemical resistant and non-conductive.







EASY TO INSTALL – NO TOOLS REQUIRED

One person can install the lightweight (3 lb) Rack Guard in seconds.  Simply position Rack Guard protector around any upright rack leg and fasten the Velcro hook and loop straps. Rack Guard protectors are easily stackable for greater protection.  Save time, labor, and the cost of other materials such as anchors.





CHEAPER THAN REPAIR OR RACK REPLACEMENT

As Benjamin Franklin said, “an ounce of prevention is worth a pound of cure”.  By installing Rack Guard protectors now, you can protect both your inventory and the structural integrity of your rack system.  Rack Guard protectors can save you money by reducing floor damage upon impact and they cost a fraction of the price of steel racks.  By protecting your pallet rack today, you have made a one-time insurance investment.



ALWAYS ON DUTY

Rack Guard protection is always on duty under any condition, down to 0 degrees Celsius and can be used indoors or outdoors.  They don’t stay dented and they pop back to original shape after impact, ready to stand guard again.



SIZES AND STYLES

Rack Guard protectors are available in various styles and sizes.  Each unit is 18” tall and stackable.  Rack Guard protectors are available in widths to protect rack upright 3” to 4”.  The 3” (75mm) is available with a 6” cutout to accommodate horizontal beams 5 ˝” or 7” from the floor.

3” (75mm) with cutout

3” (75mm)

3” (75mm) Corner/End of Row

3.25” (80 mm)

3.5” (90 mm)

4” (100 mm)

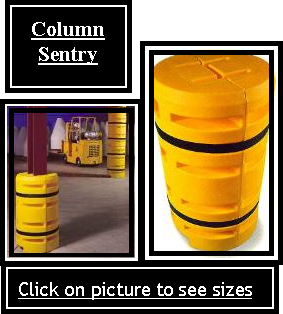

Column protectors

42” high

Sizes range from 4” Square up to 20” Square

9” Round fits up to 6” x 6”

8” x 10” H (I-Beam) fits 8” Web, up to 10” flange

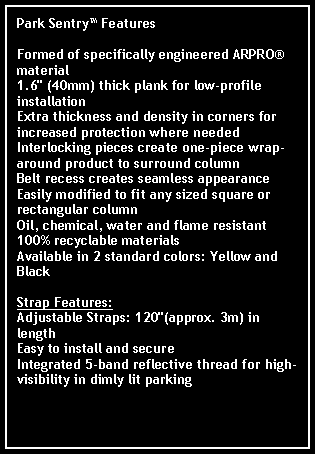

Text Box: Park Sentry™ Features

Formed of specifically engineered ARPRO® material
1.6" (40mm) thick plank for low-profile installation
Extra thickness and density in corners for increased protection where needed
Interlocking pieces create one-piece wrap-around product to surround column
Belt recess creates seamless appearance
Easily modified to fit any sized square or rectangular column
Oil, chemical, water and flame resistant
100% recyclable materials
Available in 2 standard colors: Yellow and Black

Strap Features:
Adjustable Straps: 120"(approx. 3m) in length
Easy to install and secure
Integrated 5-band reflective thread for high-visibility in dimly lit parking structures

No Tools required to install pallet rack protectors.  They velcro on quickly with straps that wrap around the upright post.
